Other

• - HUD Code
• - 20 lb. Roof Load Std., 30 psf optional
• - Wind Zone I Std., Zones II optional
• - Thermal Zone 3 Standard

- HUD Code
- 20 lb. Roof Load Std., 30 psf optional
- Wind Zone I Std., Zones II optional
- Thermal Zone 3 Standard

Construction

• - Joists: 2x6 / 16” O.C.
• - Vinyl: Challenger Linoleum by Shaw® throughout home
• - Decking: 19/32” 4x8 OSB T&G

- Joists: 2x6 / 16” O.C.
- Vinyl: Challenger Linoleum by Shaw® throughout home
- Decking: 19/32” 4x8 OSB T&G

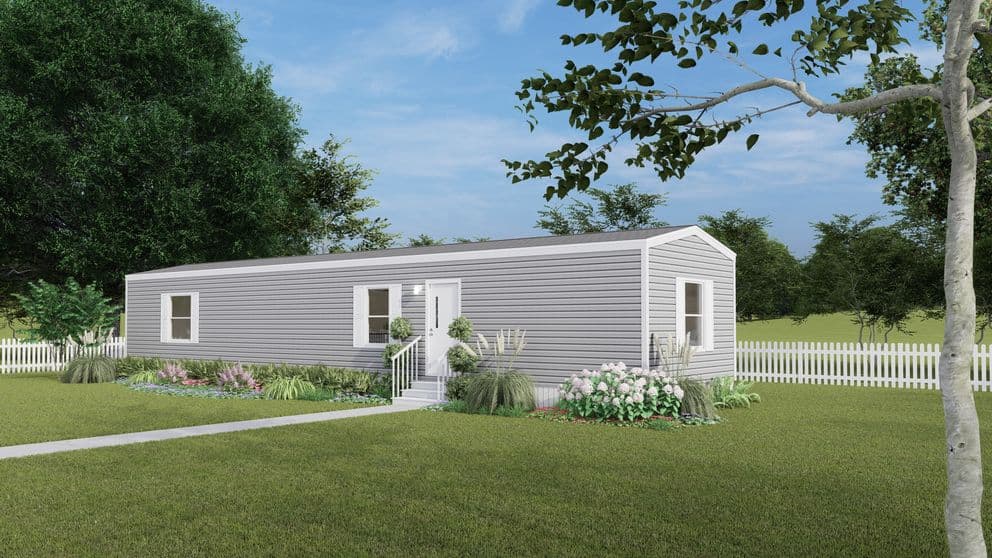

Exterior

• - Vinyl Siding: Standard
• - Sheathing: WZ I - Thermoply Structural Sheathing
• - Exterior Faucet
• - Shutters: Front Door Side Windows
• - Shingles: 25 year - 3 tab
• - Trusses: 24” O.C. spacing
• - Sheathing: 7/16” OSB
• - Insulation: Blown Fiberglass
• - Ceiling: Textured
• - Ceiling Slope: Vault/Flat Ceiling
• - Attic Ventilation: Static & Ridge Vents

- Vinyl Siding: Standard
- Sheathing: WZ I - Thermoply Structural Sheathing
- Exterior Faucet
- Shutters: Front Door Side Windows
- Shingles: 25 year - 3 tab
- Trusses: 24” O.C. spacing
- Sheathing: 7/16” OSB
- Insulation: Blown Fiberglass
- Ceiling: Textured
- Ceiling Slope: Vault/Flat Ceiling
- Attic Ventilation: Static & Ridge Vents

Other

• - Front door: Steel front door with Storm
• - Rear door: Out Swing 9-Lite Door
• - Interior doors: White 6-Panel Door
• - Windows: LUX Thermal Pane Low E Vinyl, size per prints

- Front door: Steel front door with Storm
- Rear door: Out Swing 9-Lite Door
- Interior doors: White 6-Panel Door
- Windows: LUX Thermal Pane Low E Vinyl, size per prints

Other

• - Water Heater: 40 gallon Rheem® electric + dual element
• - Kitchen Sink: Stainless Steel, dbl bowl
• - Lavatory Sinks: Plastic
• - Faucets: Pfister® Metal Faucets
• - Master Bath: 54” ABS Plastic Tub
• - Hall Bath: 54” ABS Plastic Tub
• - Whole House Water Shut Off
• - Ice Maker Ready

- Water Heater: 40 gallon Rheem® electric + dual element
- Kitchen Sink: Stainless Steel, dbl bowl
- Lavatory Sinks: Plastic
- Faucets: Pfister® Metal Faucets
- Master Bath: 54” ABS Plastic Tub
- Hall Bath: 54” ABS Plastic Tub
- Whole House Water Shut Off
- Ice Maker Ready

Mechanical

• - Heat: Carrier® Electric (gas optional)
• - Ductwork: Metal duct wrapped with insulation
• - Thermostat: Ecobee3 Lite Smart Thermostat
• - Load Center: 200 amp
• (100 amp allowed when gas option ordered – gas range and gas furnace)
• - Exterior Receptacles: (1) GFI recept and cover
• - Interior Receptacles and Switches: White, self contained
• - Phone Jack(s): None
• - AC: Conduit
• - LED Light Bulbs installed
• - Wire & Brace for Ceiling Fan, LR only

- Heat: Carrier® Electric (gas optional)
- Ductwork: Metal duct wrapped with insulation
- Thermostat: Ecobee3 Lite Smart Thermostat
- Load Center: 200 amp
(100 amp allowed when gas option ordered – gas range and gas furnace)
- Exterior Receptacles: (1) GFI recept and cover
- Interior Receptacles and Switches: White, self contained
- Phone Jack(s): None
- AC: Conduit
- LED Light Bulbs installed
- Wire & Brace for Ceiling Fan, LR only

Construction

• - Exterior Wall Construction: 2x4, 16” O.C. spacing
• - Ext. Wall Height Sidewall 7’-0”, Endwall 7’-0”
• (combo vault/flat ceiling, per prints)
• - Interior Wall Construction: 2x3, 24” O.C. spacing (per print)
• - Wall Coverings: 3/8” paper on gyp
• - Wall Coverage at Closets: 3/8” gyp, raw

- Exterior Wall Construction: 2x4, 16” O.C. spacing
- Ext. Wall Height Sidewall 7’-0”, Endwall 7’-0”
(combo vault/flat ceiling, per prints)
- Interior Wall Construction: 2x3, 24” O.C. spacing (per print)
- Wall Coverings: 3/8” paper on gyp
- Wall Coverage at Closets: 3/8” gyp, raw

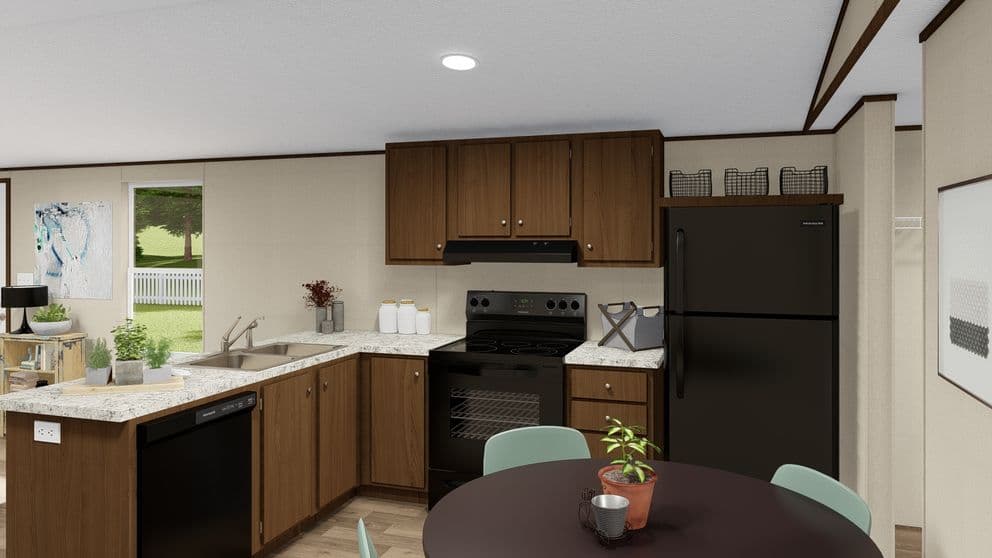

Interior

• - Cabinets: DuraCraft® (duracraftcabinets.com)
• - Countertops (All): Wilsonart® Laminant (TRU Select)
• - Backsplash: None
• - Closet Shelving: ClosetMaid® – vinyl wrapped metal
• - Utility Shelving: above washer/dryer
• - Refrigerator: Frigidaire® 18’ Top Freezer
• - Range: Frigidaire® 30” Electric/Gas Option
• - Frigidaire® 24” Dishwasher
• - Range Hood: 30”, 100 cfm min, vent through sidewall

- Cabinets: DuraCraft® (duracraftcabinets.com)
- Countertops (All): Wilsonart® Laminant (TRU Select)
- Backsplash: None
- Closet Shelving: ClosetMaid® – vinyl wrapped metal
- Utility Shelving: above washer/dryer
- Refrigerator: Frigidaire® 18’ Top Freezer
- Range: Frigidaire® 30” Electric/Gas Option
- Frigidaire® 24” Dishwasher
- Range Hood: 30”, 100 cfm min, vent through sidewall

Other

• OPTIONS AVAILABLE
• 1. Upgraded In Swing Rear Door w/ Storm
• 2. Wind Zone II, OSB not included
• 3. Ice Dam Protection
• 4. Gas Option: Range and Furnace only (100 or 200 amp)
• 5. 30# roof load, 16” O.C. Trusses
• 6. OSB Wrap
• 7. Smart Panel Siding

OPTIONS AVAILABLE
1. Upgraded In Swing Rear Door w/ Storm
2. Wind Zone II, OSB not included
3. Ice Dam Protection
4. Gas Option: Range and Furnace only (100 or 200 amp)
5. 30# roof load, 16” O.C. Trusses
6. OSB Wrap
7. Smart Panel Siding
